Air Suction Document Folder Formax FD3302
Air Suction Document Folder Formax FD3302
TAX FREE (FOR US MARKET)
Available in several colors — contact us for more information
Couldn't load pickup availability

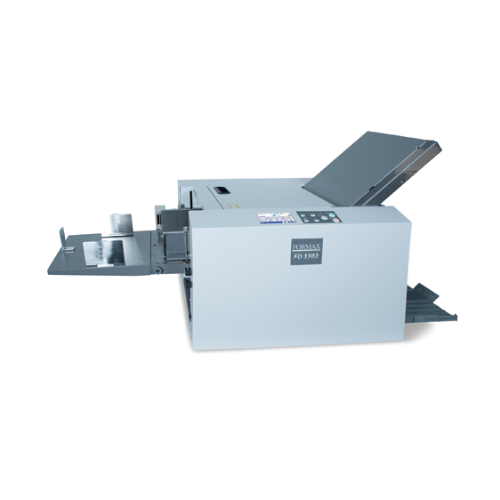

Formax FD 3302 Air Suction Document Folder, Air-Suction Feed System, 4.3" LCD Color Touchscreen Control Panel, Accommodates Sheets up to 25.5" Long, Adjustable Air Flow, Double Feed Detection

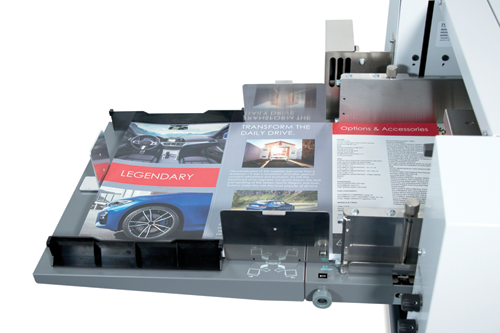

The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems. The FD 3302 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint. With a speed of up to 18,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications, all at the touch of a button, while optical and ultrasonic double feed detection ensures document integrity. It's designed to handle a variety of paper weights and sizes, up to 25.5" long, combining an extended infeed tray with variable fan speed and air flow that can be adjusted independently using the interactive control panel and external adjustment knobs.
Key Features
- Air-Suction Feed System

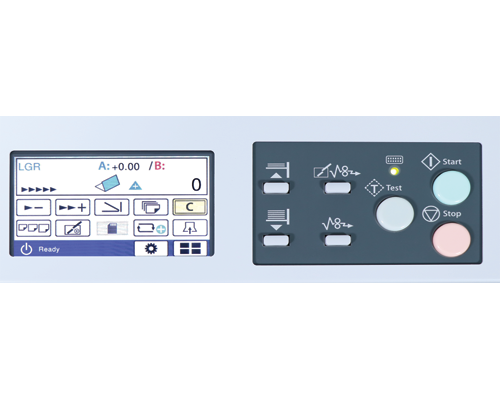

- 4.3" LCD Color Touchscreen Control Panel
- Accommodates sheets up to 25.5" long
- Recognizes the most popular paper sizes including letter, legal, ledger, half letter and half legal

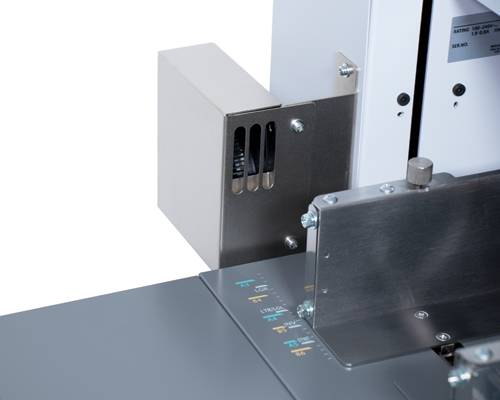

- Side Air System
- Adjustable Air Flow
- Double Feed Detection

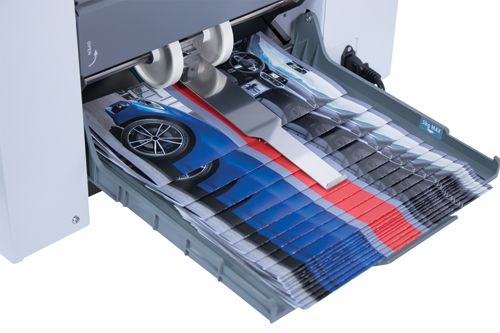

- Outfeed Stacking Belt & Rollers
- Batch Counting
Specifications:
- Speed: Up to 18,600 sheets/hour (11", single fold), Five speed levels
- Hopper Capacity: Up to 1.96" high, 625 sheets (64gsm)
- Pre-Set Folds: C, Z, Half, Fold Out, Gate, Double Parallel, Custom, Cross Fold created by feeding through a second time
- Custom Folds: Up to 30
- Paper Size: 4.73" x 7.2" up to 12.2" x 25.5"
- Feed Type: Air suction belt
- Double Feed Detection: Optical and ultrasonic sensors
- Power: 110-240V, 50/60 Hz
- Dimensions: (LxDxH): 53.3 x 23.2 x 24.2 inches
- Weight: 157 pounds
