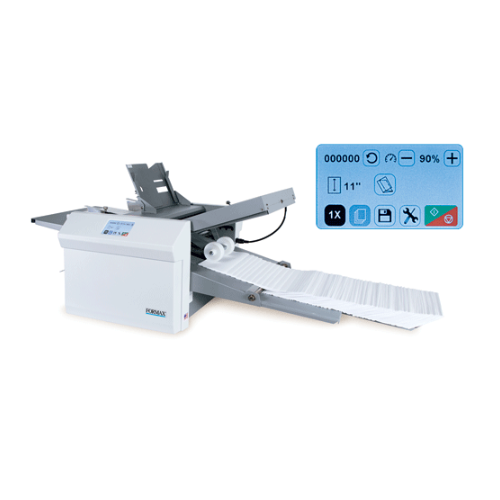

Fully-Automatic Touchscreen Document Folder Formax FD 38Xi

Fully-Automatic Touchscreen Document Folder Formax FD 38Xi

Regular price $5,519.00 USD
Regular price Sale price $5,519.00 USD
Sale Sold out

TAX FREE (FOR US MARKET)

Formax FD 38Xi Fully-Automatic Touchscreen Document Folder, Up to 17000 Sheets/h, Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel, Up to 500 sheets 20# Hopper Capacity

Key Features:
- Large jobs are processed quickly at speeds of up to 17000 pieces per hour

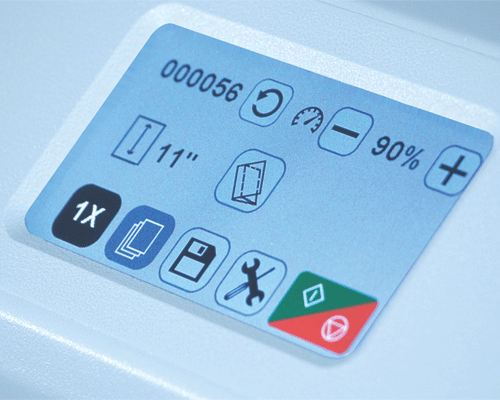

- The touchscreen control panel allows anyone to walk up and start folding in seconds

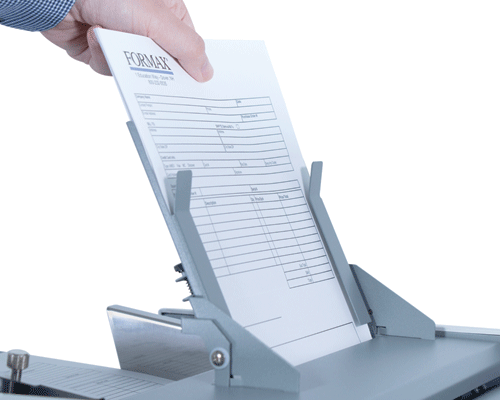

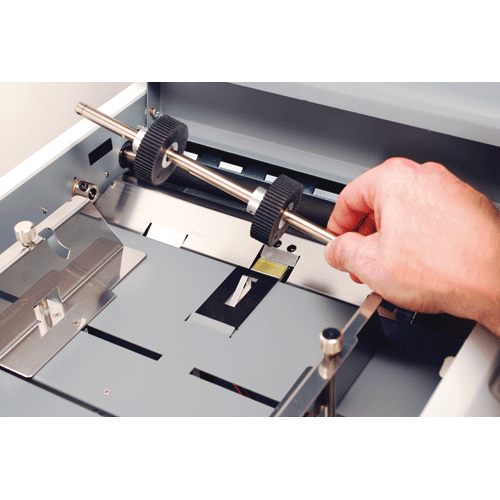

- Three-roller drop-in feed system produces dependable feeding of forms with no fanning required

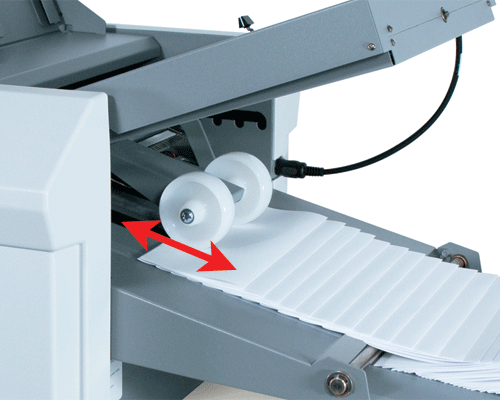

- Fully-automated stacker wheels eliminate moving them by hand when switching paper sizes and fold types
- Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
- Fold plates are enclosed and insulated to reduce operating noise 6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
- Programmable to process pre-set number of sheets into sets with a delay
- Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings
- Up to 36 custom folds can be programmed and stored into memory
- Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes
- Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization

Specifications:
- Speed: Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold
- Hopper Capacity: Up to 500 sheets 20# (75 gsm)
- Pre-Set Folds: Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel
- Pre-Set Paper Sizes: 11", 14", 17", A5, A4, A3, B6, B5, B4
- Custom Folds: Up to 36
- Paper Size: Min: 3.5" W x 5"; Max: 12.25" W x 18" L
- Dimensions: Closed: 33" L x 20" W x 19" H; Fully Extended: 60" L x 20" W x 19" H
- Weight: 73 lbs (33kg)
- Power: 110-240VAC 50/60 Hz
- Safety Certifications: UL & CE approved
